Ceiling Installation Overview

Everything you need to know about ceiling installation.

Ceiling Installation

Use the below resources to learn how to install drop, surface mount, and WOODHAVEN Plank ceilings.

Suspended (Drop) Ceiling Installation

Need access to pipes, duct work or wiring above your ceiling?
Want the ability to easily replace damaged or stained ceiling panels?
Have some headroom to spare?

24" x 24" and 24" x 48" ceiling panels install in a suspended (drop) grid system. This installation method is perfect when access to overhead electrical wiring, pipes or duct work is needed.

Quick Installation Overview:

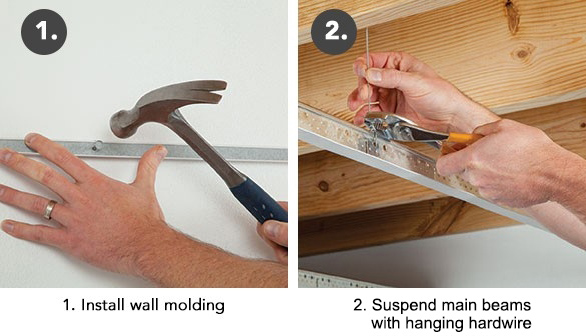

drop ceiling installation steps 1 and 2

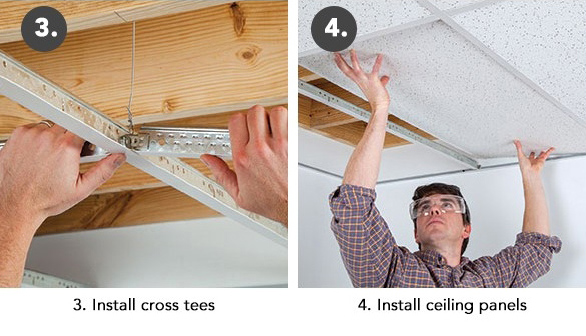

drop ceiling installation steps 3 and 4

Installation Resources:

Suspended (Drop) Ceiling Installation Guide

Learn about how to install a drop ceiling, including what materials and tools are needed to complete your project. From layout and planning to execution, this guide will walk you through the key steps of installing a ceiling.

PDF 15/16” and 9/16” grid Installation Instructions

Surface Mount (Direct Apply) Ceiling Installation

Want to cover drywall, stains, popcorn or textured ceilings?
Want to maximize your ceiling height?
Don't like the look of grid (drop ceilings)?

Surface mount (direct apply) ceiling tiles and planks can install directly to joists or existing drywall, plaster, or textured/popcorn ceilings. Two installation methods can be used to install these products: Armstrong EASY UP Installation System or adhesive.

Quick Installation Overview using EASY UP system:

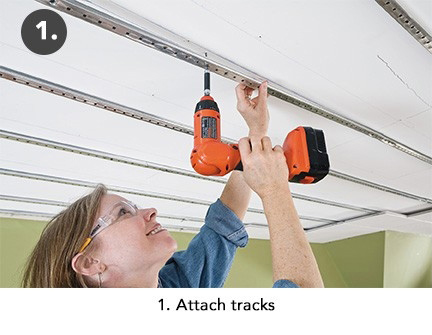

surface mount installation step 1

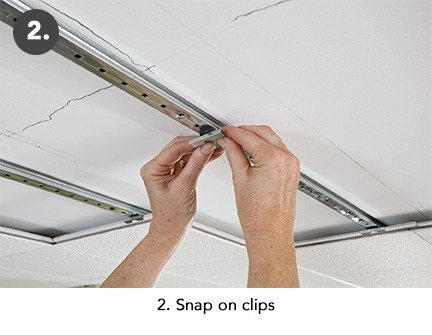

surface mount installation step 2

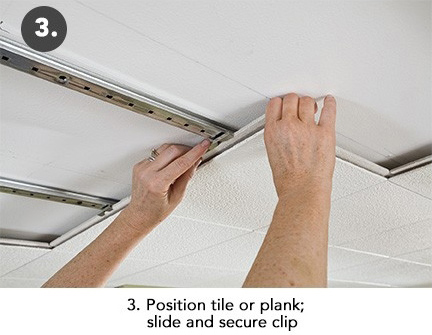

surface mount installation step 3

Installation Resources:

EASY UP Track and Clip System Overview

Learn about the EASY UP track and clip products and the three easy steps it takes to install surface mount tiles or planks.

Installing COUNTRY CLASSIC Planks with the EASY UP System

Learn how to install 480 COUNTRY CLASSIC Planks with the EASY UP Track and Clip System in this how-to video from ARMSTRONG Ceilings. The EASY UP tracks and clips are not included in the plank carton and will need to be purchased separately.

PDF COUNTRY CLASSIC Planks with EASY UP system or adhesive Installation Instructions

PDF 12”x12” tiles with EASY UP system or adhesive Installation Instructions

PDF EASY ELEGANCE planks with EASY UP system or adhesive

WOODHAVEN Planks Installation

WOODHAVEN Planks can be installed to ceilings in three different ways:

EASY UP tracks and clips - this floating system allows for natural movement in a home and helps to level the ceiling. This is the ideal way to install WOODHAVEN Planks over a popcorn ceiling.
Installation clips and screws included in the cartons - install directly to furring strips.
Cover an existing 15/16" suspended (drop) ceiling using EASY UP clips.

Installation Resources:

PDF WOODHAVEN Installation Instructions

Installing WOODHAVEN Planks with Included Hardware

Watch how WOODHAVEN Planks are attached to exposed joists using furring strips. This same method can also be used when installing planks over drywall.

Update a Drop Ceiling with Wood Look Planks

Learn how you can easily update a drop ceiling with WOODHAVEN wood look planks and EASY UP clips. Completely cover your ceiling grid without tearing it down and get a popular wood ceiling look in as little as a weekend.

Installing WOODHAVEN Planks with the EASY UP System

Watch this video to see step-by-step instructions for installing WOODHAVEN Ceilings with EASY UP Tracks and Clips.

Installing WOODHAVEN Ceilings on Sloped Ceilings

Learn how to install WOODHAVEN Planks on a sloped ceiling greater than ten degrees in this step-by-step video, including requirements for a successful installation on a sloped ceiling. Always install from the bottom and work up to the peak.

For additional installation videos, please visit our video library.

For a complete list of available installation instructions, click here.
