Key Features & Performance
- Dynamic Curving capabilities available
- Adjustable Trim Clip (Item 7239) makes AXIOM VECTOR Trim compatible with WOODWORKS and METALWORKS panels or planks that drop greater than 3/8" below the grid flange

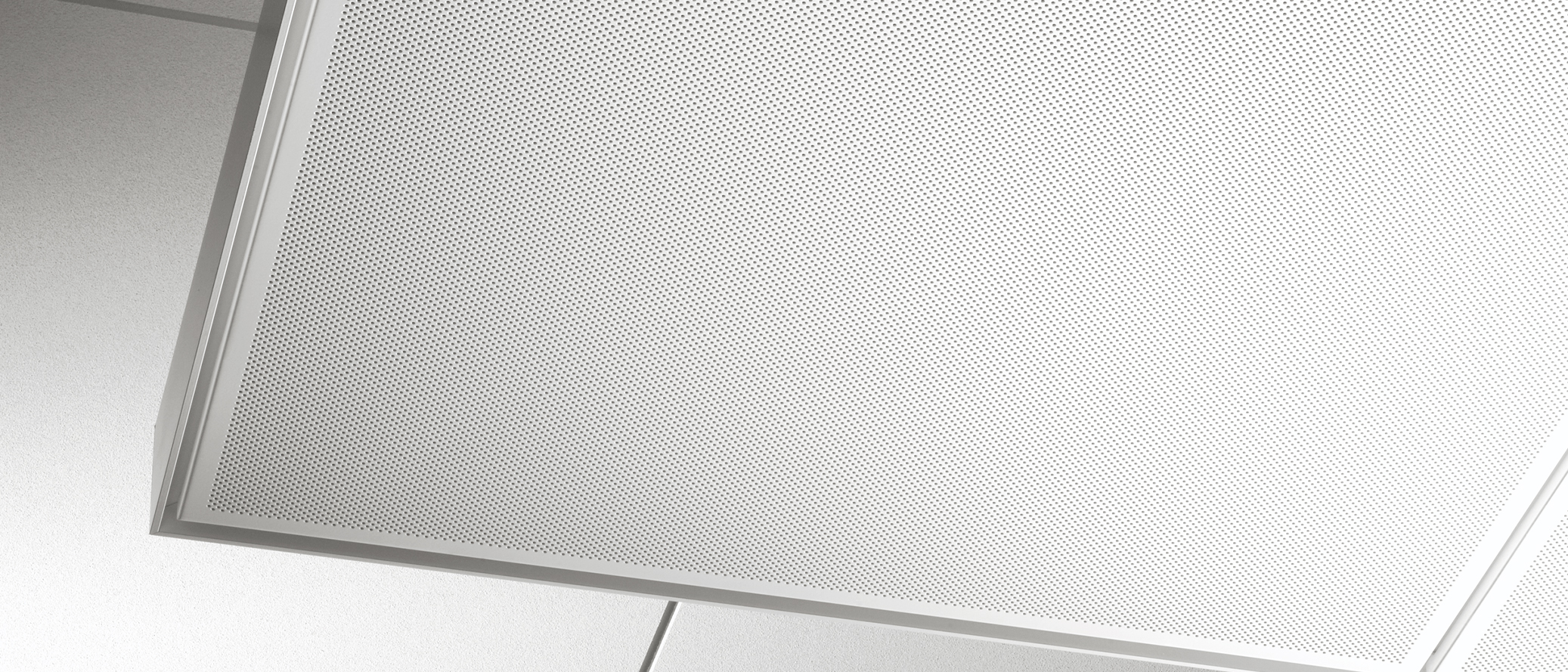

- Incorporates the sophisticated grid-hiding visual of a Vector ceiling with a perimeter
- AXIOM trim is part of the SUSTAIN portfolio and meets the most stringent industry sustainability compliance standards today – White and SUSTAIN colors only
- Recommended for use with full-size Vector ceiling panels; preserves factory-cut Vector edge detail
- Standard 90º factory-mitered inside corner and outside corner posts available
- Colors coordinate with Armstrong ceiling and suspension systems
- Extruded aluminum trim provides more crisp edge detailing compared to conventional roll-formed steel systems
- Compatible with Armstrong exposed suspension systems and drywall grid systems
- Custom slotting, perforating, and cutouts available
Perimeter Trim
Category D, E & F
May be wiped following CDC recommendations using EPA disinfectant cleaners per Armstrong Cleaning & Disinfecting Guidelines
May be sprayed following CDC recommendations using EPA disinfectant cleaners per Armstrong Cleaning & Disinfecting Guidelines
May be fogged following CDC recommendations using EPA-approved disinfectant cleaners per Armstrong Cleaning & Disinfecting Guidelines
|
Recyclable/Extended Producer Responsibility
|
Recycled Content
|
|
Energy Management
|
Sourcing of Raw Materials
|
|
Construction Waste
|
Material Ingredient Reporting
|
|
Regional Materials
Location Dependent
|
Low emitting/materials
|
|
Design for Flexibility
|
Lighting Quality
|
|
EPD
|
Acoustics
|
|
Biobased Materials
|
Colors & Options
Color shown may vary from actual product.
Colors
- Basalt
- Black
- Blizzard White
- Boxwood
- Charcoal Black
- Coffee
- Feldspar
- Fern
- Fossil
- Grey Stone
- Gun Metal Grey
- Hay
- Honeysuckle
- Ivory
- Ivy
- Light Grey
- Lilac
- Limestone
- Marigold
- Medium Taupe
- Mist
- Mottled Silver Grey
- Oat
- Ocean
- Pacific
- Polar
- Rainstorm
- Riverstone
- Rose
- Sandstone
- Silver Grey
- Silver Satin
- Topaz
- Twilight
- White
- Wood Looks Cherry
- Wood Looks Dark Cherry
- Wood Looks Maple
- Wood Looks Oak
- Wood Looks Walnut
- Wood Looks Walnut Expresso
- AXIOM Vector in Custom Color
87 AXIOM Vector Products
Sustain = Items included in the SUSTAIN portfolio
| Item # | Description | Drawing | Color | |||
|---|---|---|---|---|---|---|
0612V4A2224VSustain | Formations Staggered - 4" Axiom Vector 6x12 (2'x2' / 2'x4' Panels) | |||||
0806V4A2224V | Formations Staggered - 4" Axiom Vector 8x6 (2'x2' / 2'x4' Panels) | |||||
1216V4P26VSustain | Formations Planks 4" Axiom Vector 12x16 (2'x6' Panels) | |||||
1612V6P24VSustain | Formations Planks 6" Axiom Vector 16x12 (2'x4' Panels) | |||||
1614V6A2224VSustain | Formations Staggered - 6" Axiom Vector 16x14 (2'x2' / 2'x4' Panels) | |||||
1616V2A1222VSustain | Formations Staggered - 2" Axiom Vector 16x16 (1'x2' / 2'x2' Panels) | |||||
1616V4P28VSustain | Formations Planks 4" Axiom Vector 16x16 (2'x8' Panels) | |||||
1616V6A2224VSustain | Formations Staggered - 6" Axiom Vector 16x16 (2'x2' / 2'x4' Panels) | |||||
C2VES1010CSustain | Axion Formations 2" Vector Curves 10' Circle | |||||
C2VES1212CSustain | Axion Formations 2" Vector Curves 11'-5" Circle | |||||
C2VES1414CSustain | Axion Formations 2" Vector Curves 14' Circle | |||||
C4VES1010CSustain | Axiom Formations 4" Vector Curves 10' Circle | |||||
C4VES1212CSustain | Axiom Formations 4" Vector Curves 11'-5"' Circle | |||||
C4VES1414CSustain | Axiom Formations 4" Vector Curves 14' Circle | |||||
C6VES1010CSustain | Axiom Formations 6" Vector Curves 10' Circle | |||||
C6VES1212CSustain | Axiom Formations 6" Vector Curves 11'-5" Circle | |||||
C6VES1414CSustain | Axiom Formations 6" Vector Curves 14' Circle | |||||
L0608TSFAV8Sustain | Formations,Suprafine,w/integrated lighting- 6'x8' with 8" Axiom Vector Height | |||||
L0808TSFAV6Sustain | Formations,Suprafine,w/integrated lighting- 8'x8' with 6" Axiom Vector Height | |||||
L0810TSFAV6Sustain | Formations,Suprafine,w/integrated lighting- 8'x10' with 6" Axiom Vector Height | |||||
0606V2A1222VSustain | Formations Staggered - 2" Axiom Vector 6x6 (1'x2' / 2'x2' Panels) | |||||
0606V6A2224VSustain | Formations Staggered - 6" Axiom Vector 6x6 (2'x2' / 2'x4' Panels) | |||||
0608V2A1222VSustain | Formations Staggered - 2" Axiom Vector 6x8 (1'x2' / 2'x2' Panels) | |||||
0806V4P24VSustain | Formations Planks 4" Axiom Vector 8x6 (2'x4' Panels) | |||||
0806V6P24VSustain | Formations Planks 6" Axiom Vector 8x6 (2'x4' Panels) | |||||
1010V6A2224VSustain | Formations Staggered - 6" Axiom Vector 10x10 (2'x2' / 2'x4' Panels) | |||||
1014V4A2224VSustain | Formations Staggered - 4" Axiom Vector 10x14 (2'x2' / 2'x4' Panels) | |||||
1206V6P24VSustain | Formations Planks 6" Axiom Vector 12x6 (2'x4' Panels) | |||||
AX2VEISCPSustain | 2in Axiom Vector Inside Corner Post |  |
| |||
AX2VEISCP3Sustain | 2in Axiom Vector Inside Corner Post 360 Painted | |
| |||
AX2VEQSISSustain | 2in Axiom Vector Quik Ship Inside Corner | |
| |||
AX2VEQSIS3Sustain | 2in Axiom Vector Quick Ship Inside Corner 360 Pai | |
| |||
AX4VEISCPSustain | 4" Axiom Vector Inside Corner Post |  |
| |||
AX4VEISCP3Sustain | 4" Axiom Vector Inside Corner Post - 360 Degree Pa | |
| |||
AX4VEQSISSustain | 4in Axiom Vector Quick Ship Inside Corner | |
| |||
AX4VEQSIS3Sustain | 4in Axiom Vector Quick Ship Inside Corner 360 Pain | |
| |||
AX6VEISCPSustain | 6in Axiom Vector Inside Corner Post | |
| |||
AX6VEISCP3Sustain | 6in Axiom Vector Inside Corner Post 360 Degree Pai | |
| |||
AX6VEQSISSustain | 6in Axiom Vector Quick Ship Inside Corner | |
| |||
AX6VEQSIS3Sustain | 6in Axiom Vector Quick Ship Inside Corner 360 Pain | |
| |||
AX8VEISCPSustain | 8" Axiom Vector Inside Corner Post | |
| |||
AX8VEISCP3Sustain | 8" Axiom Vector Inside Corner Post - 360 Degree Pa |
| ||||
AX8VEQSISSustain | 8" Axiom for Vector Inside Corner |
| ||||
AX8VEQSIS3Sustain | 8" Axiom for Vector Inside Corner |
| ||||
AXVE2WESustain | 2in Axiom Vector Welded End Cap |  | ||||
AXVE4WESustain | 4in Axiom Vector Welded End Cap |  | ||||
AXVE6WESustain | 6in Axiom Vector Welded End Cap |  | ||||
AX2VEOSCPSustain | 2in Axiom Vector Outside Corner Post | |
| |||
AX2VEOSCP3Sustain | 2in Axiom Vector Outside Corner Post 360 Painted | |
| |||
AX2VEQSOSSustain | 2in Axiom Vector Quick Ship Outside Corner | |
| |||
AX2VEQSOS3Sustain | 2in Axiom Vector Quick Ship Outside Corner 360 Pai | |
| |||
AX4VEOSCPSustain | 4in Axiom Vector Outside Corner Post | |
| |||
AX4VEOSCP3Sustain | 4in Axiom Vector Outside Corner Post 360 Painted | |
| |||
AX4VEQSOSSustain | 4in Axiom Vector Quick Ship Outside Corner | |
| |||
AX4VEQSOS3Sustain | 4in Axiom Vector Quick Ship Outside Corner 360 Pai | |
| |||
AX6VEOSCPSustain | 6in Axiom Vector Outside Corner Post | |
| |||
AX6VEOSCP3Sustain | 6in Axiom Vector Outside Corner Post 360 Painted | |
| |||
AX6VEQSOSSustain | 6in Axiom Vector Quick Ship Outside Corner | |
| |||
AX6VEQSOS3Sustain | 6in Axiom Vector Quick Ship Outside Corner 360 Pai | |
| |||
AX8VEOSCPSustain | 8in Axiom Vector Outside Post | |
| |||
AX8VEOSCP3Sustain | 8" Axiom Vector |
| ||||
AX8VEQSOSSustain | 8" Axiom for Vector Outside Corner |
| ||||
AX8VEQSOS3Sustain | 8" Axiom for Vector Outside Corner |
| ||||
AX2VESTRSustain | 2in Axiom VectorStraight |  |
| |||
AX2VESTR3Sustain | 2in Axiom Vector Straight 360 Painted | |
| |||
AX4VESTRSustain | 4in Axiom Vector Straight |  |
| |||
AX4VESTR3Sustain | 4in Aaxiom Vector Straight 360 Painted | |
| |||
AX6VESTRSustain | 6in Axiom Vector Straight |  |
| |||
AX6VESTR3Sustain | 6in Axiom Vector Straight 360 Painted | |
| |||
AX8VESTRSustain | 8" Straight Axiom |  |
| |||
AX8VESTR3Sustain | 8" Straight Axiom | |
| |||
AX2VECURSustain | 2in Axiom Vector Curved | |
| |||
AX2VECUR3Sustain | 2in Axiom Vector Curved 360 Painted | |
| |||
AX4VECURSustain | 4in Axiom Vector Curved | |
| |||
AX4VECUR3Sustain | 4in Axiom Vector Curved 360 Painted | |
| |||
AX6VECURSustain | 6in Axiom Vector Curved | |
| |||
AX6VECUR3Sustain | 6in Axiom Vector Curved 360 Painted | |
| |||
AX8VECURSustain | 8" Axiom-Curved | |
| |||
AX8VECUR3Sustain | 8" Axiom-Curved | |
| |||
AX2VEDCCSustain | 2in Axiom Vector Dynamic Curved Corners (STR-CUR-STR) |  |
| |||
AX2VEDCC3Sustain | 2in Axiom Vector Dynamic Curved Corners (STR-CUR-STR) 360 Painted | |
| |||
AX4VEDCCSustain | 4in Axiom Vector Dynamic Curved Corners (STR-CUR-STR) | |
| |||
AX4VEDCC3Sustain | 4in Axiom Vector Dynamic Curved Corners (STR-CUR-STR) 360 Painted | |
| |||
AX6VEDCCSustain | 6in Axiom Vector Dynamic Curved Corners (STR-CUR-STR) | |
| |||
AX6VEDCC3Sustain | 6in Axiom Vector Dynamic Curved Corners (STR-CUR-STR) 360 Painted | |
| |||
AX8VEDCCSustain | 8in Axiom Vector Dynamic Curved Corners (STR-CUR-STR) | |
| |||
AX8VEDCC3Sustain | 8in Axiom Vector Dynamic Curved Corners (STR-CUR-STR) 360 Painted | |
| |||
