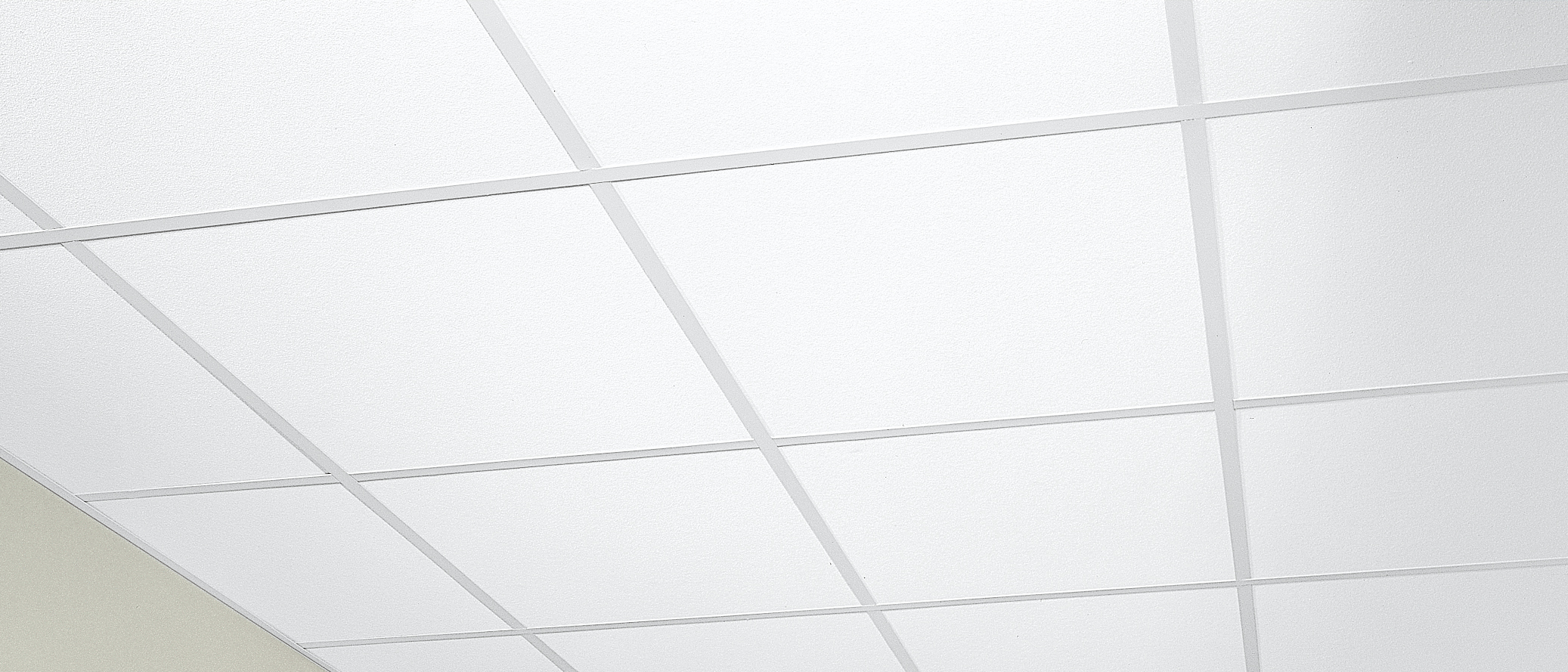

ULTIMA for PRELUDE XL Max

A smooth visual ceiling with TOTAL ACOUSTICS performance - sound absorption and blocking needed for today’s flexible spaces.

Key Features & Performance

  • DESIGNFlex options include shapes and made-to-order sizes available to ship in 3 weeks
  • Get total noise control and design flexibility with TOTAL ACOUSTICS ceiling panels: NRC + CAC = TOTAL ACOUSTICS performance
  • Smooth, clean, durable finish – Washable, Impact-resistant, Scratch-resistant, Soil-resistant
  • Ceiling-2-Ceiling Post-consumer Recycled Content options: items 1910HRC, 1913HRC. 71% Pre-consumer; 15% Post-consumer
  • USDA Certified Biobased Product – 95%
  • Non-directional visual reduces scrap and installation time
  • Compatible with TECHZONE Ceiling Systems
Acoustics
Sound Absorption (NRC)

A measure for rating the overall sound absorption of a material when used in an enclosed architectural space where sound is reflected at many angles of incidence. A ceiling system with an NRC < 0.50 is low performance, an NRC > 0.70 is high performance.

0.80
Sound Blocking (CAC)

A measure for rating the performance of a ceiling system as a barrier to airborne sound transmission through a common plenum between adjacent closed spaces. A ceiling system with a CAC < 25 is considered low performance, whereas one with CAC of 35 or higher is high performance.

35
Articulation Class (AC)

Product has AC (Articulation Class) 170 or greater.

170
Fire
Fire Performance
Class A
Light
Light Reflectance

A high light reflective ceiling – LR 0.83 or greater, per ASTM E1477-98 as referred to in ASTM E1264-98 – makes lighting systems, especially indirect lighting, more effective while further reducing energy costs and consumption. LR values apply to White panels only.

88%
Anti-Microbial
Mold/Mildew Resistance

Ceiling panels with BIOBLOCK performance resist the growth of mold and mildew on the panel surface.
Ceiling panels with BIOBLOCK Plus performance resist the growth of odor and stain-producing bacteria as well as mold and mildew on the ceiling panel surface.

BIOBLOCK
Humidity
Sag/Humidity Resistance

Ceiling panels maintain humidity and sag resistance.

HUMIGUARD Plus
Disinfectability
Fog

May be fogged following CDC recommendations using EPA-approved disinfectant ​cleaners per Armstrong Cleaning & Disinfecting Guidelines​

Special Applications

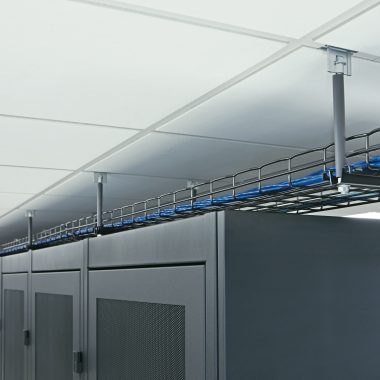

Data Center / Computer Room
Made In U.S.A. Of Domestic and Global Content
Yes
Sustainability Profile
Sustainable Product Search Tool
Recyclable via the Armstrong Ceilings Recycling Program
LEED  •  WELL  •  Living Building Challenge
Recyclable/Extended Producer Responsibility
Recycled Content
Energy Management
Sourcing of Raw Materials
Construction Waste
Material Ingredient Reporting
Regional Materials
Location Dependent
Low emitting/materials
Design for Flexibility
Lighting Quality
EPD
Acoustics
Biobased Materials
